IT and Automation Solutions
We service automations in areas of Lighting, Entertainment, Climate Control, Security, Surveillance, Safety and Operation Control, thereby providing a secure and comfortable lifestyle. Multi brand system integration is our forte. Allow us to replace remote controls to a single app on your smart phone.
We work with Wireless Technology, which will integrate to your existing Lighting, Air Conditioners, Television, Amplifiers and Home Theatre Systems. No re-wiring/re-cabling necessary. We also provide CCTV, Internet and WiFi solutions and video door phones. We do consultancy on security for properties using the latest trends in technology.
Consultancy on customized data network security solutions is also undertaken.
Amaze Tech is based in Goa and has execution partners in Chennai, Bangalore, Mangalore, Mumbai, Pune and Surat
Mr. Gautam Mangalorekar is an IT professional with over 20 years of experience in the industry. He has worked with the National Institute of Oceanography and CMC Ltd. During his carrer, he has executed many projects for the Indian Navy, Reserve Bank of India, National Center of Antarctic and Ocean Research, Central Bank of India, Bank of Maharashtra and Bank of India.
Home automation Solutions

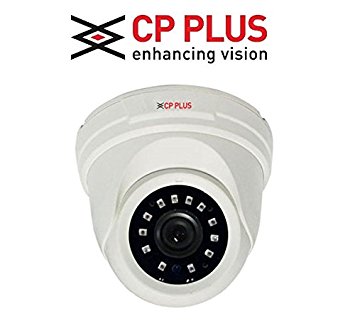

CCTV solutions
Internet and Wifi Solutions
Data security Solutions
Fibaro Home Automation System
Broadlink
Vitrum Home Solutions
Global Cache

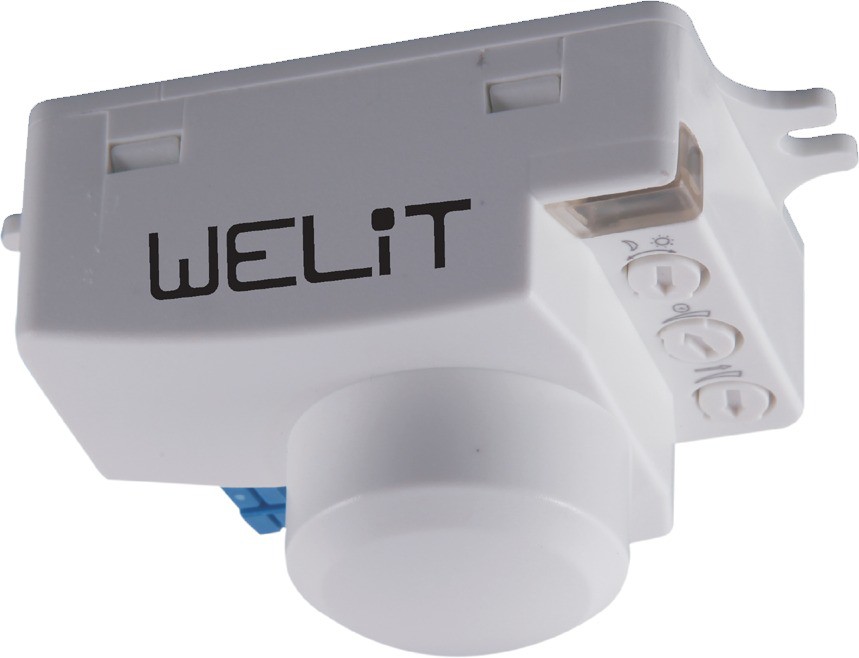

Welit Integrated Switches
VU Televisions
Dlink Switches and Routers
Wulian Smart Homes
Yale Locks
The most versatile and powerful home automation system.
Description:
FIBARO Home Sentor 2 is a brain of your Home Automation system. The Home Center 2 communicates with up to 230 modules) using Z-Wave technology. Create new scenes, customize your system for your needs.
• Remote access via web page or smartphone.
• Possibility to write scripts in lua.
• Friendly interface with easy configuration.
• Geo localization and SMS or Push notifications.*
• High-speed operation with Ultra low-energy consumption.
• Advanced backup and recovery system.
*sms notification available only in Poland as an additional service
Technical Specifications:
• Wireless technology: Z-Wave
• 4-in-1 Sensor: Motion, temperature, accelerometer and lighting level
• PIR: 7mm detection and 2.4 recommended installation height
• Temperature: 0 to +40°C (±0.5°C)
• Light: 0 - 32,000Lux
• Tamper Alarm: Yes
• Push-button: Wake-up, inclusion and exclusion
• Rating: Dry (Indoor) conditions
• Power: 1x CR123A (3.6V) battery (supplied)
• Dimensions: 44 mm (dia)
Description:

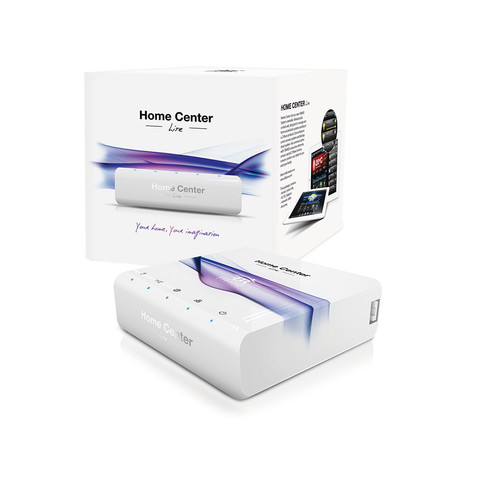

FIBARO Home Center Lite (HCL) is incredibly compact brain of the FIBARO Home Automation System. It is very intuitive and affordable solution for creating your Smart Home . HCL can be managed in a very easy way via smartphone or tablet. Thanks to FIBARO Home Center Lite you can control your electronic appliances, save your money and time. HCL it’s a huge capabilities of the home automation placed into one, tiny box for the reasonable price.
• Lighter version of FIBARO Home Center
• Remote access via web page or smartphone
• Text messages notification
• Simple, friendly user interface with easy configuration
• Communicate with up to 230 actors and sensors in your home using Z-wave system.
Techical Specifications:
• Wireless technology: Z-Wave
• Antenna: External High Gain
• Network Interface: 10/100/1000Base-T (Gigabit) Ethernet via RJ45 connector Processor: ARM Cortex-A8 (720MHz)
• Power: 9-12VDC (Power Supply included)
• LEDS: Power, Status, Ethernet, LAN, Z-Wave and etc.
• Dimensions (LxWxH): 90 x 90 x 33 mm
Description:

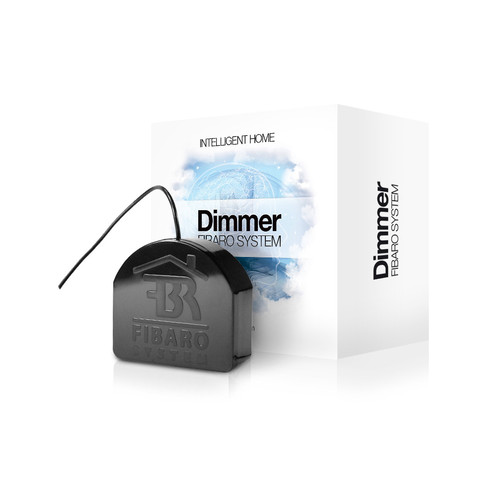

FIBARO Dimmer enable you to wirelessly control lights by inserting module into an existing light switch. Dimmer has been designed to work with almost any types of light sources*. The FIBARO Dimmer is the smallest available module of this type, measuring just 17mm high.
• Enables control and dimming of the light
• May operate in 3-way systems
• The device may be operated by momentary and toggle push-buttons
• Fits into standard switch boxes
• Possibility to activate scenes by physical switch
• Z-Wave range tester
• Automatically adjusts to the type of connected lighting system
• Has a function of activating scenes
*In some cases additional equipment and/or adjustments can be needed
Technical Specifications:
• Wireless technology: Z-Wave
• Voltage: 110 - 240V AC
• Maximum load: 25-500W resistive load. For loads < 25W also use Fibaro Dimmer Bypass
• Bulb Types: Incandescent bulbs, 230V halogen and dimmable LEDs - not recommended for 12V lighting systems, systems using transformers or fluorescent / compact fluorescent lighting
• Power Consumption: < 0.8W
• Range: up to 50m (outdoors) and 30m (indoors)
• Dimensions (LxWxH): 42,5 x 38,25 x 20,3 mm
• Firmware Versions: v2.2
Description:
The FIBARO Roller Shutter 2 allows you to control electric roller blinds, awnings, venetian blinds, garage doors and gates. Roller Shutter can control any device that is powered by an AC electric motor.
• Controlled by FIBARO System devices or any Z-Wave controller
• Allows to monitor the motor's energy consumption
• Controls of the blinds position or the angle of a venetian blind
• Executive elements: relays
• The device may be operated by momentary or toggle switches and by dedicated roller blind control switches
• Possibility to activate scenes by physical switch
Technical Specifications:
• Wireless technology: Z-Wave
• Voltage: 110 - 240V, 50Hz
• Wiring: Requires neutral
• Maximum load: 1,000W - 4.3A (230V AC)
• Power Consumption: < 0.8W
• Range: up to 50m (outdoors) and 30m (indoors)
• Dimensions (LxWxH): 42 x 37 x 17mm
Description:

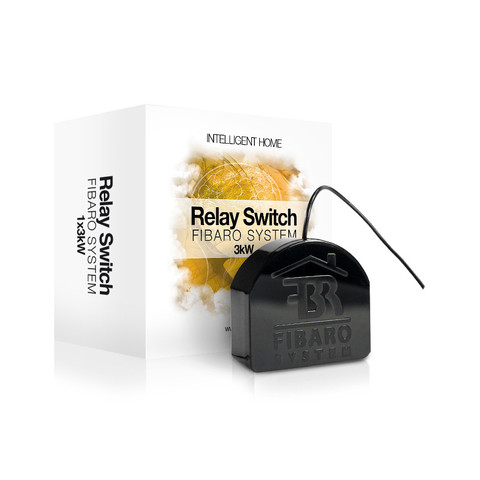

The FIBARO Relay Switch allows to control loads up to 1,5 KW *. Relay Switch can switch on or off devices connected to the plugs. Relay Switch designed to be installed in standard wall switch boxes or anywhere else it’s necessary to operate an electric device of 1500W of power output. The FIBARO Relay Switch is the smallest relay module available on a market, measuring just 17mm high.
• Wireless On/Off control of any appliances
• Control light, allows to create different light scenes
• Fit into standard switch boxes
• May be used to control heating
* Fibaro Relay Switch 1X3kW allows to control upto 2.5kW.
Technical Specifications
• Wireless technology: Z-Wave
• Voltage: 110 - 240V AC or 24 - 60V DC
• Maximum load (per channel): 6.5A (Resistive)
• Maximum total load: 10A (Resistive)
• Power Consumption: < 0.8W
• Range: up to 50m (outdoors) and 30m (indoors)
• Dimensions (LxWxH): 43 x 38 x 20 mm
• Firmware Versions: v2.1
Description:

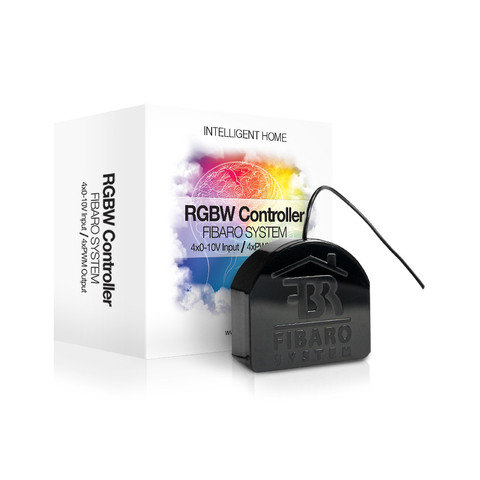

The FIBARO RGBW Controller is a universal, Z-Wave compatible RGB/RGBW controller. With RGBW you can create incredible illumination effect using one of 3 million different colors to match your mood or a special occasion. RGBW has allows you to read values from analog sensors and providing you with most accurate data about environment.
• Possibility to control colors in your home with smartphone
• Lighting scenes with amazing animation
• Possibility to install in garden, swimming pool, bathroom
• Serves up to 4 analog (0-10 V) sensors*
• DC powered
• Power mattering
*Additional Analog sensor not included
Technical Specifications
• Wireless technology: Z-Wave
• Voltage: 12V or 24V DC
• Maximum Output Current:
12A - sum of all output channels
6A - for a single channel
• Maximum Load: 144W (at 12VDC), 288W (at 24VDC)
• Load Type: 12/24V LED or Halogen bulbs
• Inputs: 4x (binary or 0-10V)
• Outputs: 4x PWM
• Power Consumption: < 0.3W
• Range: up to 50m (outdoors) and 30m (indoors)
• Dimensions (LxWxH): 42 x 37 x 17mm
Description:

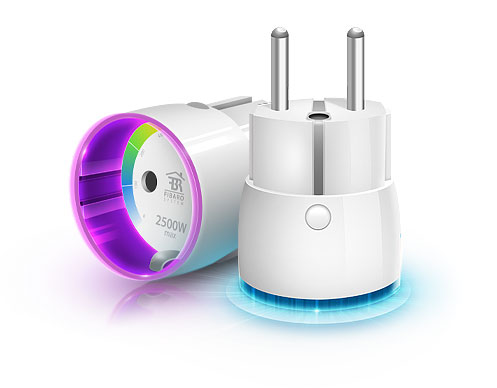

FIBARO Wall Plug is an intelligent, ultimate plug and play, and most sophisticated, controlled remotely outlet adapter. This highly functional Wall Plug can be applied wherever you want to control electrical devices, while monitoring the energy consumption in a convenient and maintenance-free way.
• Plug and Play extremely easy installation, unpack and insert to the socket
• Wireless On/Off control of any appliances
• Energy measuring of home appliances
• Controlling the energy availability time in particular sockets
Technical Specifications
• Wireless technology: Z-Wave
• Maximum load: 2,500W
• Voltage: 230V, 50Hz
• Ring LED: 16 million colours indicating appliance's power consumption
• Energy Monitoring: current consumption (W) and accumulated consumption (kWh)
• Range Tester: Indicates strength, coverage and routing at any point in the Z-Wave network
• Overload Alert: Indicates power consumption higher than preset level
• Push-button: Include and Exclude from Z-Wave network
• Dimensions (diameter x length): 43 x 65mm
• Socket Versions: Schuko (type F) and French/Belgium (type E)
Description:

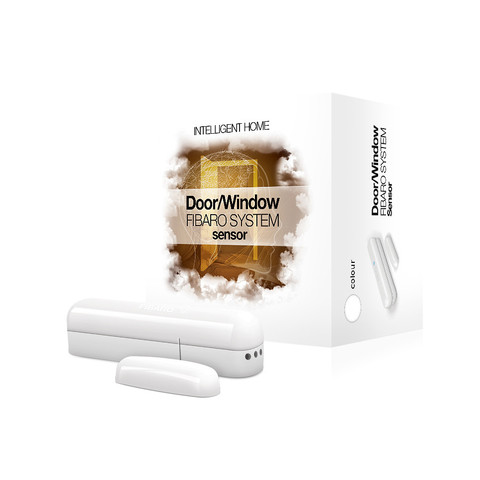

The FIBARO Door/Window Sensor is a battery powered reed sensor. The sensor expands the capabilities of the system by monitoring the opening doors, windows and garage gates. The door/windows sensor combining itself 3 functions in 1 small device: proximity, temperature and binary sensors.
• Plug and Play extremely easy installation without drilling and cabling
• Detect state of windows doors, garage gates.
• Almost invisible and available in various colors.
• Compatible with any Z-Wave Controller.
• Possibility to Integrate with alarm system
• Battery powered
• Possibility to activate scenes by physical switch
Technical Specifications
• Wireless technology: Z-Wave
• Push-button: Inclusion, exclusion to Z-Wave network
• Battery-powered (1/2AA) with Low-battery warning
• Dimensions (HxWxD): 76 x 17 x 19mm
Description:

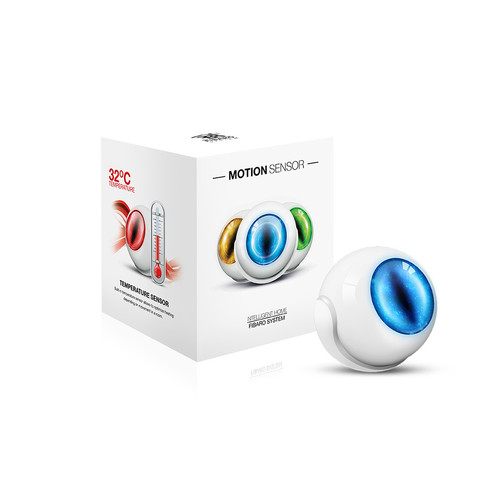

The FIBARO Motion Sensor is a highly advanced, ultra small multi-sensor. Motion Sensor honored with CES 2015 Innovation Awards and International Design Awards 2015. This tiny sensor has a built-in temperature sensor, light sensor and accelerometer. The eye of the sensor shines with user-defined colors to visually alert when detects motion and alarm. The Motion Sensor is completely wireless and mobile. It can even turn the lights on when you enter that room!
• Plug and Play extremely easy installation on surface without drilling and cabling
• Detects every motion and allows lighting controls and heating measuring
• Possibility to Integrate with alarm or fire prevention system
• Measures the temperature
• Compatibles with any Z-Wave controller
• Alarms of movement and temperature are signaled by LED diode blinking
• Simple earthquake detector mode
Technical Specifications
• Wireless technology: Z-Wave
• 4-in-1 Sensor: Motion, temperature, accelerometer and lighting level
• PIR: 7mm detection and 2.4 recommended installation height
• Temperature: 0 to +40°C (±0.5°C)
• Light: 0 - 32,000Lux
• Tamper Alarm: Yes
• Push-button: Wake-up, inclusion and exclusion
• Rating: Dry (Indoor) conditions
• Power: 1x CR123A (3.6V) battery (supplied)
• Dimensions: 44 mm (dia)
Description:

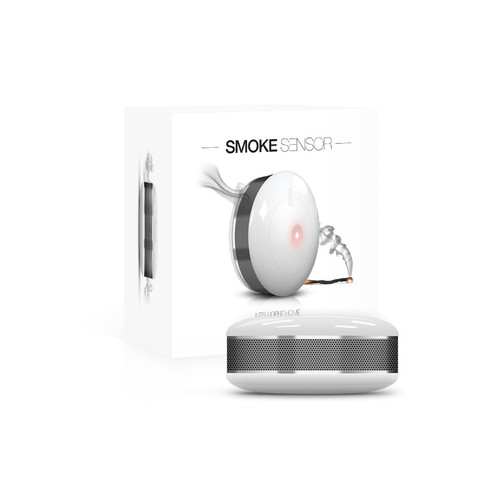

FIBARO Smoke Sensor is one of the smallest wireless smoke sensor in the World. In distinction from other devices like this, thanks to the modern design Smoke Sensor is perfectly much any interior.
• Plug and Play extremely easy installation without drilling and cabling
• Detects smoke
• Detects high temperature raise
• Can trigger alarm just by exceeding temperature threshold
• Has 3 levels of sensors sensitivity
• Compatibles with any Z-Wave Controller
• Possibility to Integrate with alarm or fire prevention system
• Battery powered
• Powered from a single battery that lasts up to 2 years
Technical Specifications
• Wireless technology: Z-Wave
• Sensors: Smoke and Temperature
• Power: Battery
• Output Terminal Voltage: 40V (AC or DC) max.
• Output Terminal Current: 25mA max.
• Dimensions (diameter x height): 65 x 28mm
Description:

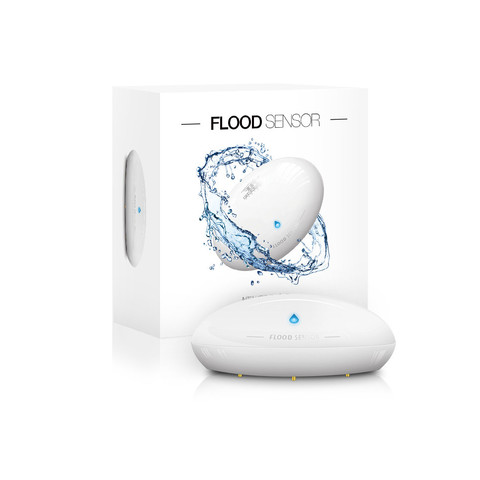

FIBARO Flood Sensor is the most beautiful and functional flood sensor ever made. Z-Wave compatible FIBARO Flood Sensor will protect your home from water leaks and flood. Flood Sensor design to be placed on a floor or wall.
• Plug and Play extremely easy installation without drilling and wiring.
• May be installed anywhere Flood Sensor contacts extended with a wire
• Detects water leaks before it became a problem
• Alerts of a threatening flood, tilt or a rapid temperature change
• Triggers mobile notification
• Compatibles with any Z-Wave network controller
• Battery-powered for up to 2.5 years
• Possibility to Integrate with any traditional alarm system
Technical Specifications
• Wireless technology: Z-Wave
• Power: CR123A Battery
• External Power: 12-24 VDC
• Output Terminal Voltage: 40V (AC or DC) max.
• Output Terminal Current: 25mA max.
• Measure Temperature: -20 to +100°C
• Dimensions (diameter x height): 72 x 28mm
